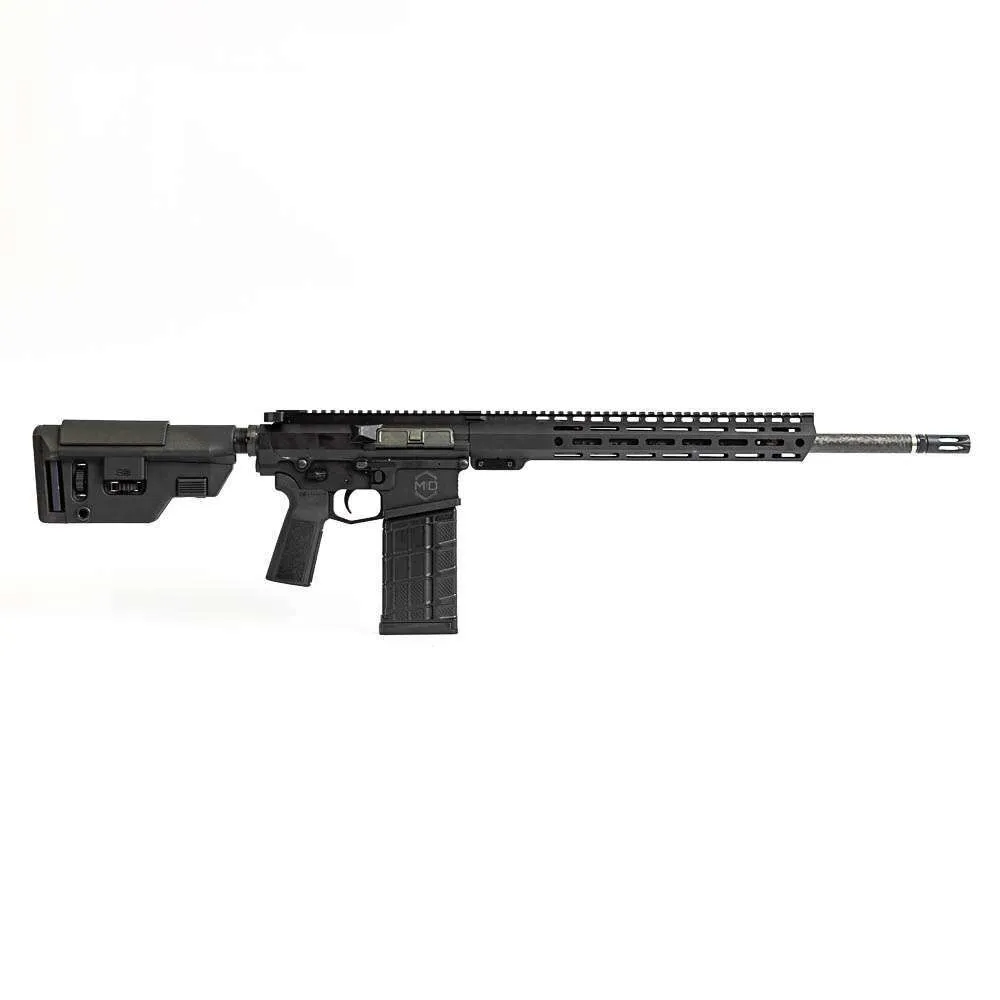

Mitchel Defense “Pipe Hitter” MD-10
LEO/GOV only for Massachusetts. If an individual MA Officer wishes to acquire an SBR version, we’ll work with you, Contact us!
Free Staters are welcome to order.
Price is only an estimate due to the number of options on Mitchell Defense firearms. We’ll work with you on final pricing.
LEO/GOV are eligible for 20% off list.
Build your own custom gun below. Submit for quote.
| Price: | $2,000.00 | ||
Click to add this item to cart. | |||
Product Description
Specifications
Built to meet or exceed MilSpec in every way. Designed for rugged reliability and extreme accuracy.
+MD Enhanced AR10 BCG
Mitchell Defense AR10 BCG
The Mitchell Defense AR10 BCG is designed to exceed Mil-Spec expectations.
The Mitchell Defense Secret Sauce: PRECISION GROUND
- Durability: Machined and ground to last for tens of thousands of rounds.
- Surface Finish: Both outside and all three interior dimensions are ground to achieve a near friction-less surface.
- Reliability: Partnering with industry-leading finisher H&M, our BCGs are treated with Blacknitride+™, ensuring long-term reliability and corrosion resistance.
Features:
- 8620 “DPMS” Style Carrier
- 9310 Bolt
- Single Ejector
- Gas Key, Properly Staked
Calibers:
- .308 WIN
- 6.5 Creedmoor
- 8.6 Blackout
100% American Made
+Pipe Hitter Lower
Mitchell Defense MD10 Billet Lower Receivers
The Mitchell Defense MD10 billet lower receivers are the perfect foundation. We start with a solid billet of 7075-T6 aluminum and then precisely machine all critical features and dimensions. Our process includes:
- Precision Broaching
- Hand Deburring
- Tumbling
- Hard Coat Anodizing
The result of our time and attention to detail is a receiver that will last a lifetime, ensuring a worry-free and quality build. Our AR10 billet lower receivers feature a right side bolt release lever.
Key Features:
- Material: 7075-T6 Aluminum
- Finish: Type III Class 2 Hard Coat Black Anodized
- Buffer System:
- Heavy Buffer
- A5 Length Buffer Tube
- Proprietary Flatwire AR10 Buffer Spring
- Included Components:
- Threaded Bolt Catch Pin
- Rear Takedown Detent Spring Retained with Set Screw
- Upper Receiver Tension Screw
- Right Side Bolt Release Lever (4140, Blacknitride+™ by H&M)
+Pipe Hitter Upper
Mitchell Defense AR10 Billet Upper Receivers
The Mitchell Defense AR10 billet upper receivers are the perfect complement to our billet lowers. Crafted from a solid billet of 7075-T6 aluminum, these receivers undergo a meticulous process to ensure the highest quality and durability:
- Precision Machining: Each receiver is machined from a solid billet of 7075-T6 aluminum.
- Hand Deburring: Ensures smooth edges and a clean finish.
- Tumbling: Provides a consistent and polished surface.
- Hard Coat Anodizing: Type III Class 2 hard coat black anodizing for enhanced durability and corrosion resistance.
- E Series Cerakote: Adds an additional layer of protection and a sleek, professional finish.
- Thermal Fit Barrel: Designed to perfectly fit and align with the upper receiver for optimal performance.
Key Features:
100% American Made
Material: 7075-T6 Aluminum
Finish: Type III Class 2 Hard Coat Black Anodized, E Series Cerakote
Compatibility: Fits DPMS pattern lowers and matches DPMS high profile handguards.
+The Handguard
Material:
- 11-inch handguard crafted from 6061 T6 aluminum, offering robustness and lightweight handling.
- 15-inch handguard crafted from 6061 T6 aluminum, offering robustness and lightweight handling.
Mounting Options:
- Offset Mlok slots at 3, 6, and 9 o’clock positions, as well as the 45-degree angles, allowing for versatile accessory attachments.
Top Rail:
- Full-length Picatinny rail accommodates a wide range of optics and accessories.
Stability:
- Features front and rear anti-rotational QD points on both sides and a retention system with anti-rotational tabs to maintain stability even under heavy use.
+Barrel Specs
8.6 Blk Barrels
12.5 in 1:3 Twist Rate, Stainless Steel, QPQ Nirtide
- Length: 12.5 inches
- Twist Rate: 1:3
- Material: Stainless Steel
- Finish: QPQ Nirtide
- Gas Block: Adjustable
16 in 1:3 Twist, Stainless Steel, QPQ Nirtide
- Length: 16 inches
- Twist Rate: 1:3
- Material: Stainless Steel
- Finish: QPQ Nirtide
- Gas Block: Adjustable
308 Barrels
20 in Proof Research Carbon Fiber Barrel, 1:10 Twist
- Length: 20 inches
- Twist Rate: 1:10
- Material: Carbon Fiber
- Manufacturer: Proof Research
- Gas Block: Adjustable
18 in Stainless Steel 1:10 Twist, QPQ Nitride
- Length: 18 inches
- Twist Rate: 1:10
- Material: Stainless Steel
- Finish: QPQ Nirtide
- Gas Block: Adjustable
16 in Stainless Steel 1:10 Twist, QPQ Nitride
- Length: 16 inches
- Twist Rate: 1:10
- Material: Stainless Steel
- Finish: QPQ Nirtide
- Gas Block: Adjustable
12 in Stainless Steel 1:10 Twist, QPQ Nitride
- Length: 12 inches
- Twist Rate: 1:10
- Material: Stainless Steel
- Finish: QPQ Nirtide
- Gas Block: Adjustable
6.5 Creedmoor Barrels
20 in Proof Research Carbon Fiber Barrels, 1:8 Twist
- Length: 20 inches
- Twist Rate: 1:8
- Material: Carbon Fiber
- Manufacturer: Proof Research
- Gas Block: Adjustable
18 in Stainless Steel 1:8 Twist, QPQ Nitride
- Gas Block: Adjustable
- Length: 18 inches
- Twist Rate: 1:8
- Material: Stainless Steel
- Finish: QPQ Nirtide
About Mitchell Defense
Mitchell Defense is a veteran owned and operated manufacturer in Glenside PA. They specialize in the AR platform. They make rifles in the AR10, AR15, AR9 platform and every rifle was designed to be accurate, reliable and durable. There is nothing standard about their rifles and almost every part of our rifles have been enhanced in some way for reliability and durability.
Product Features
| Type | Rifle |
| Caliber | Various |
| Barrel Length | |
| Condition | Factory New |
| Finish | Black |
| MA OK | LEO/GOV Only |
| Pre-Ban 9/13/94 | No |
| Pre-Ban 8/01/24 | No |
